Standard Models in Stock – 48-Hour Fast Shipment
Capacities: Φ 20-500 mm · Up to 12 m Length
Premium Custom Screw & Barrel Solutions
Precision Engineered for Full Plastic Extrusion Applications
Custom Manufacturing - Perfect Fit for All Major Global Brands
In the extrusion industry, diverse materials impose distinct, rigorous demands for wear and corrosion resistance. Leveraging deep technical expertise and extensive industry experience, PIPLL has crafted a full suite of customized screw and barrel solutions. No matter the specific challenges or requirements you face, PIPLL can precisely tailor the optimal solution to meet diverse performance needs across various applications. With PIPLL's offerings, you can efficiently achieve high-quality production goals, as our formulations are optimized to deliver enhanced performance and exceptionally long service life.

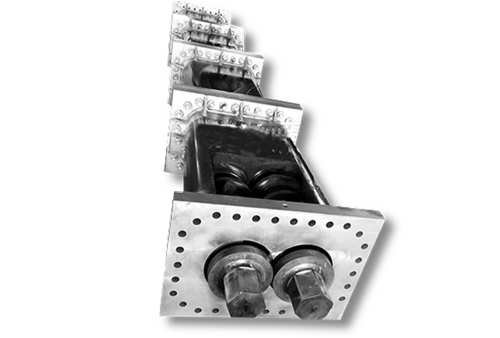

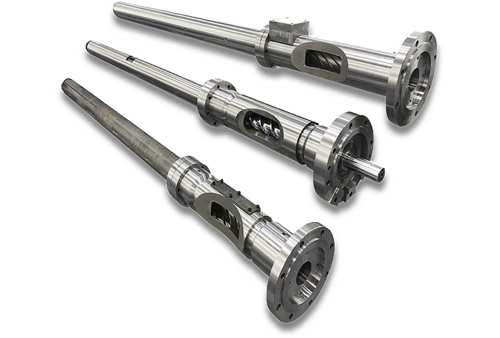

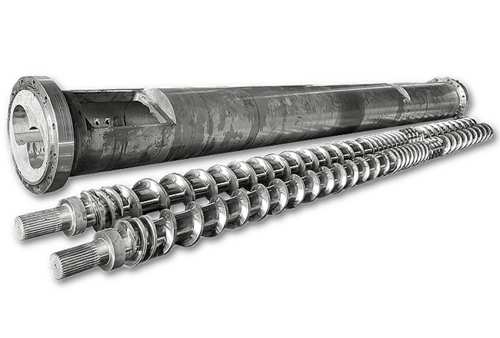

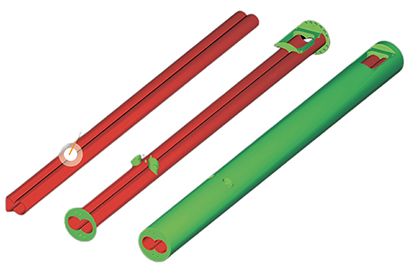

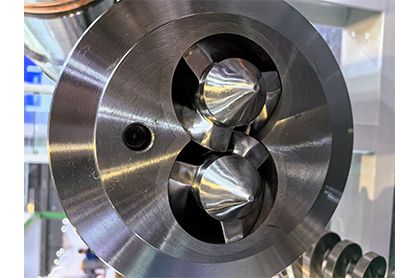

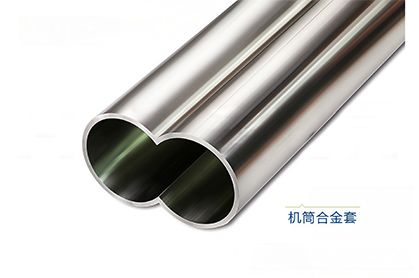

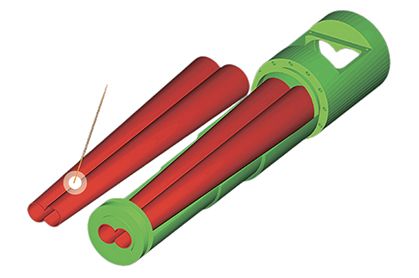

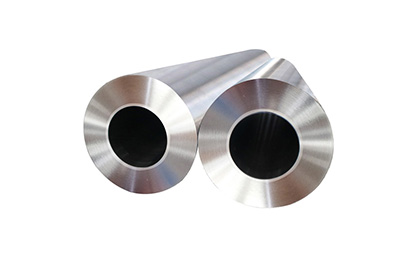

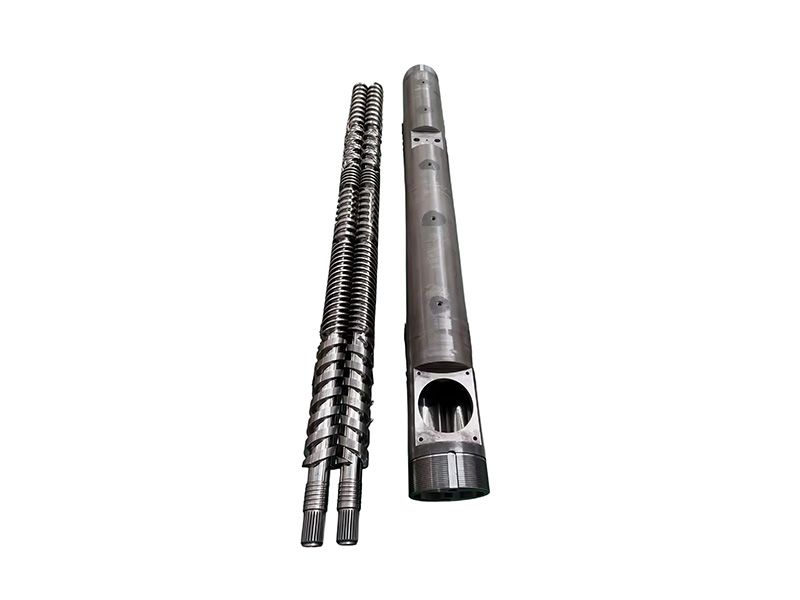

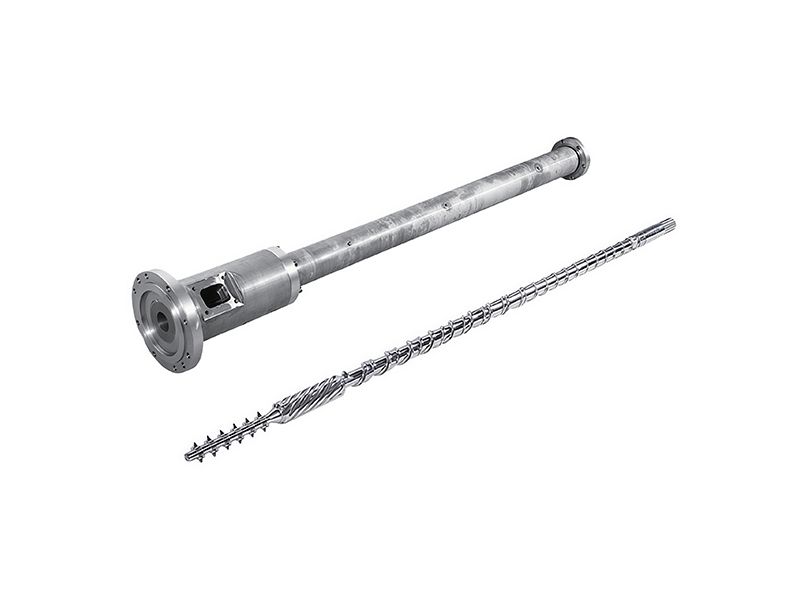

PIPLL offers barrels featuring internal liner sleeves that deliver unparalleled wear resistance. This PIPLL-engineered design not only reinforces corrosion protection but also delivers robust resistance against abrasive wear, dramatically prolonging barrel life. Beyond their exceptional durability, these PIPLL-crafted sleeves offer smart maintenance benefits: when wear sets in, the internal sleeve can be swiftly replaced without needing to overhaul the entire barrel body. This precise, targeted replacement strategy, championed by PIPLL, translates into substantial maintenance cost savings, making bi-hole extruder barrels from PIPLL a highly cost-effective and efficient solution for sustained, long-term operation.

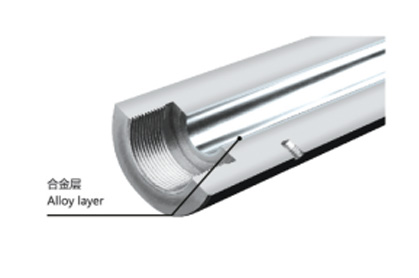

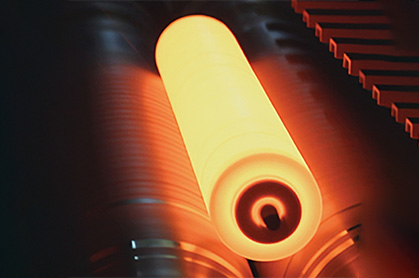

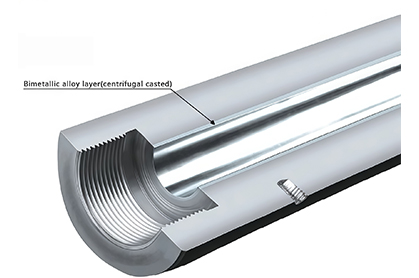

Alloy casting is the pivotal process for elevating extruder barrels' wear, corrosion, and high-temperature resistance. Among industry leaders, PIPLL stands out by fully embracing the mainstream high-temperature, high-speed centrifugal casting method. PIPLL precisely casts a 2-3mm thick layer of nickel-based, cobalt-based, or tungsten carbide alloy onto the inner wall of premium substrates like 38CrMoAlA. Through centrifugal force, PIPLL ensures the molten alloy bonds uniformly, forming a dense metallurgical connection, while impurities are segregated to the surface and removed via machining.

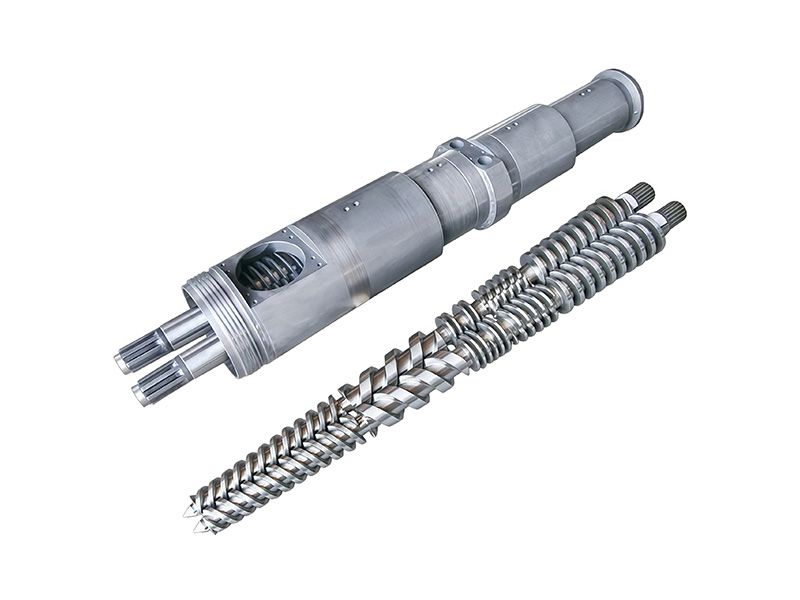

PIPLL's dual-alloy barrels, crafted with this advanced process, achieve a hardness of HRC58-65. Their service life is 3-6 times longer than conventional nitrided barrels. PIPLL's barrels excel in harsh applications, including processing glass-fiber-reinforced plastics, high-calcium PVC formulas, fluoroplastics, polysulfone, and recycled plastics. With PIPLL's solutions, equipment maintenance costs are greatly cut, and production stability is significantly boosted.

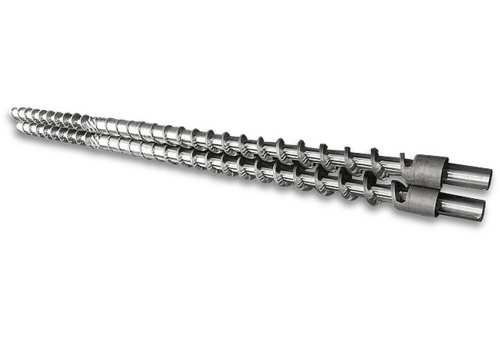

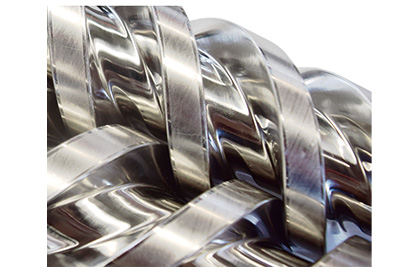

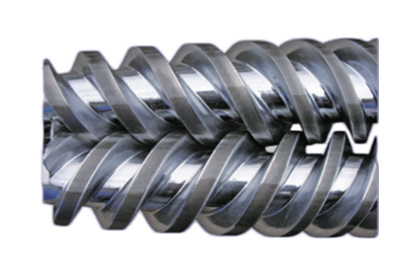

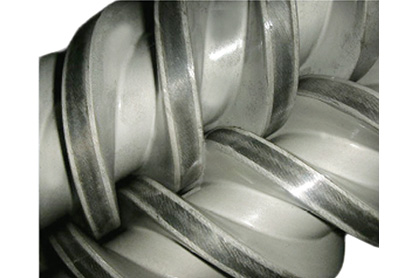

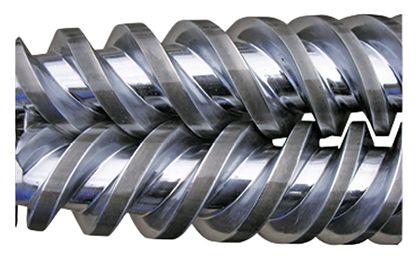

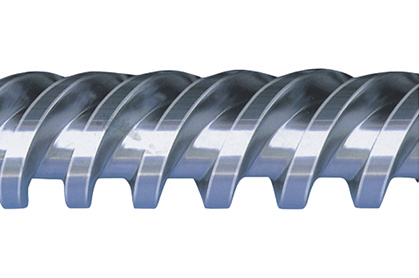

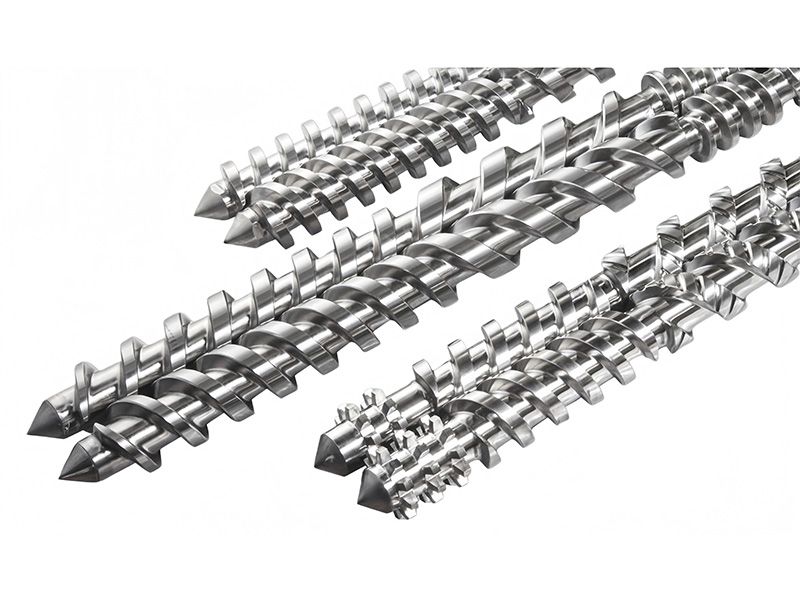

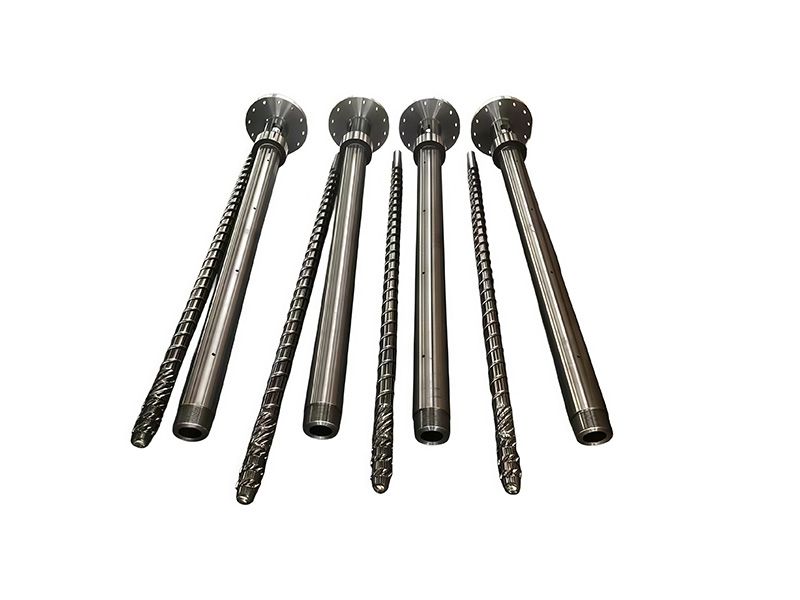

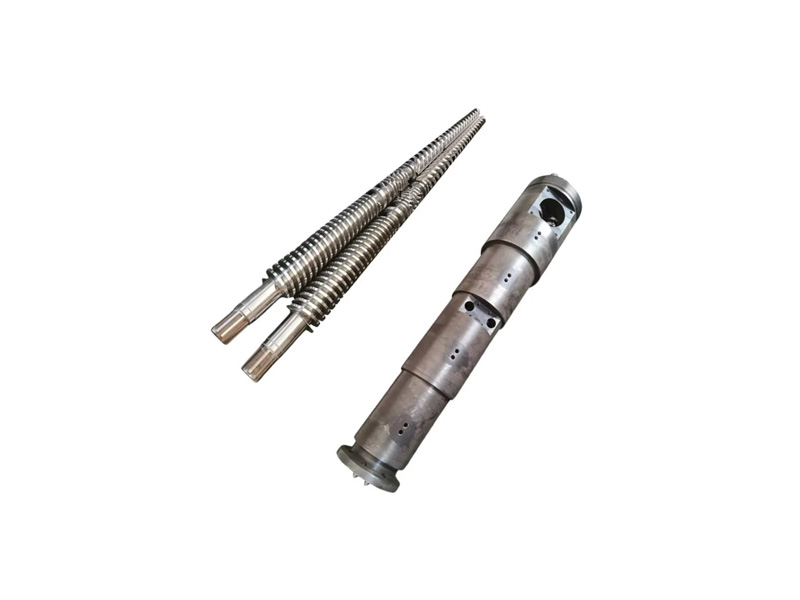

The alloy screw is the linchpin of extrusion, dictating both plasticization efficiency and final product quality. PIPLL is fully dedicated to the R&D and manufacturing of high-performance bimetallic alloy screws. By fusing wear- and corrosion-resistant alloy layers onto the substrate, PIPLL effectively tackles the rapid wear and corrosion failures that plague standard nitrided screws under harsh operating conditions.

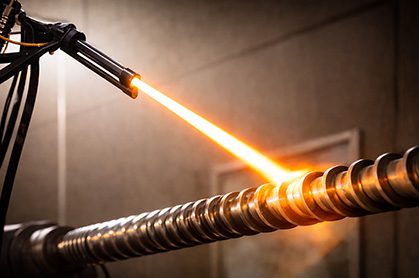

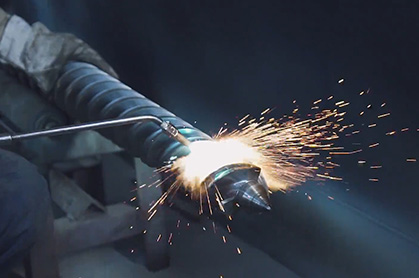

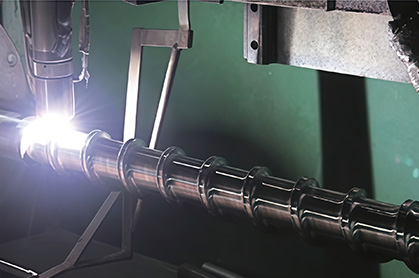

The industry favors bimetallic plasma welding and HVOF spraying. PIPLL has deeply mastered these core technologies for years, creating dense, metallurgically bonded layers—free of pores or inclusions—on premium substrates like 38CrMoAlA and 40CrNiMoA, ensuring zero alloy delamination.
PIPLL's finished alloy screws boast a hardness of HRC55-62, delivering a service life 4-8 times longer than conventional nitrided screws. PIPLL specifically tailors these screws for processing glass-fiber-reinforced plastics, highly filled PVC, fluoroplastics, engineering plastics, and high-ratio recycled materials. Paired with optimized flight geometry, PIPLL's screws significantly enhance plasticization uniformity and extrusion output, finding extensive application in pipe, sheet, and pelletizing production lines.
PIPLL stands as a trusted provider of comprehensive, premium screw solutions for the global plastics extrusion industry. PIPLL meticulously crafts every solution, deeply aligning with customers' distinct production needs and extreme operating environments. Through fully customized designs and exceptionally robust products, PIPLL directly drives up production efficiency and prolongs equipment lifespan.
Backed by decades of specialized expertise in extrusion screw manufacturing, PIPLL remains dedicated to supplying industry-leading, high-precision screws that excel in wear and corrosion resistance. Each screw from PIPLL is precision-engineered to seamlessly integrate with your extrusion machines, ensuring rock-solid performance—even when processing high-fill materials, engineering plastics, and recycled resins. With PIPLL, you gain a reliable partner that delivers unmatched quality and reliability.
